DRAWING PROJECTS
SPECIAL USE BUILDINGS

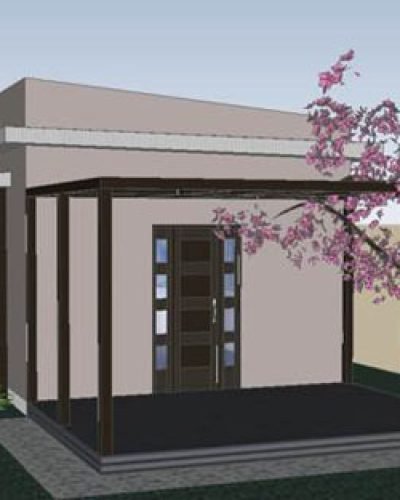

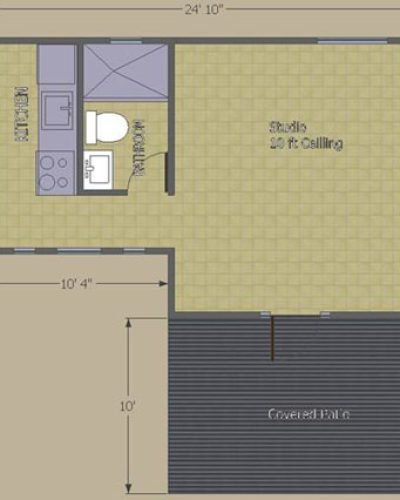

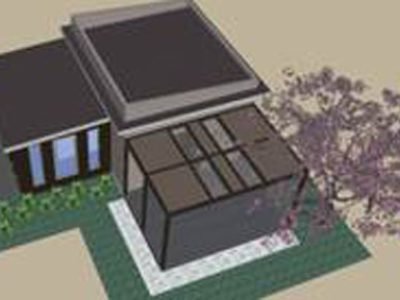

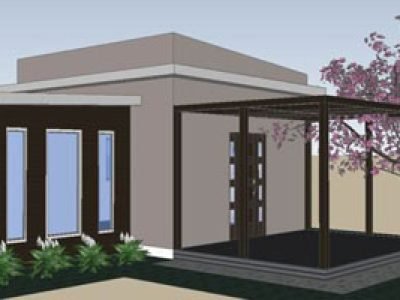

HICKORY STUDIO
- Multiple Area – 1 Bathroom
- Living Area: 348.16 sq. ft. / 32.38 sq. mt
- Total Area: 485.16 sq. ft / 45.07 sq. mt
MULTI-FAMILY

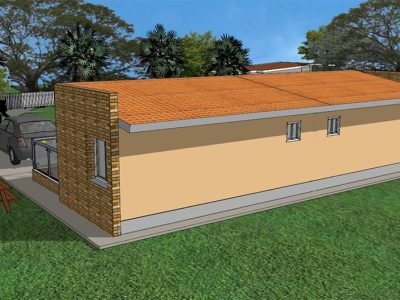

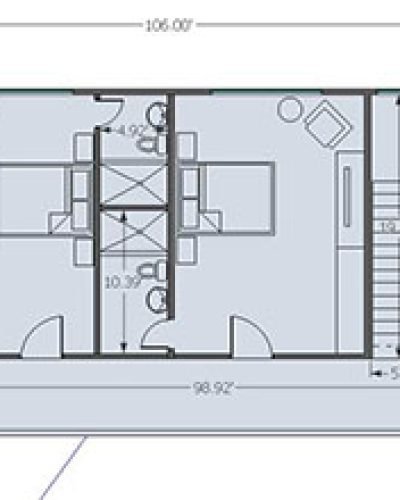

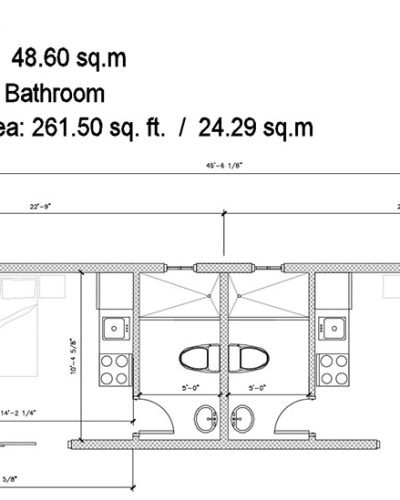

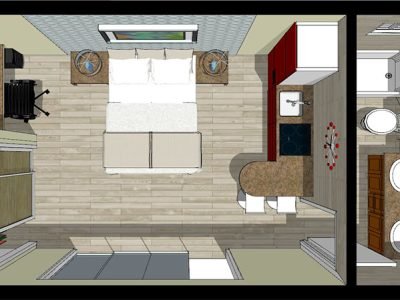

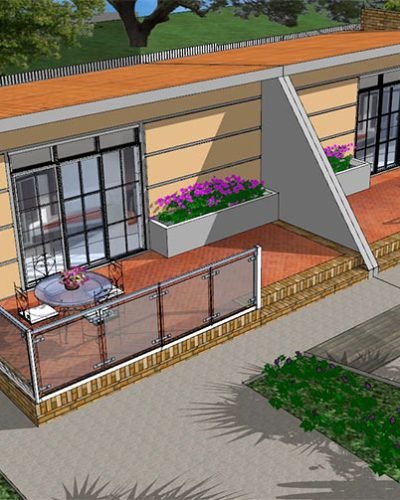

HEMLOCK CAMP
- Building Area: 523.20 sq.ft / 48.60 sq.m
- 1 Bedrooms – 1 Bathrooms
- Apartment Area: 261.50 sq. ft. /24.29 sq. m
TINY-HOUSES

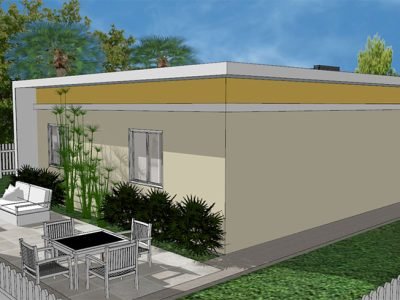

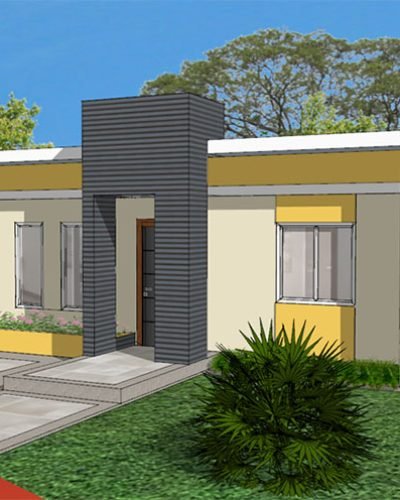

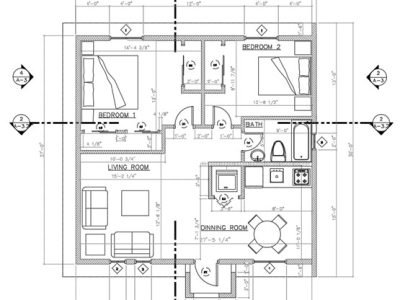

OAK HOUSE
- 2 Bedrooms – 1 Bathroom
- Total Area: 771.01 Sq.Ft. / 71.63 Mt²
COMMERCIAL BUILDING

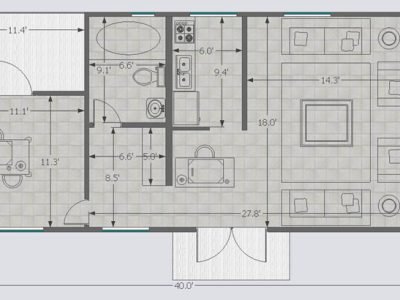

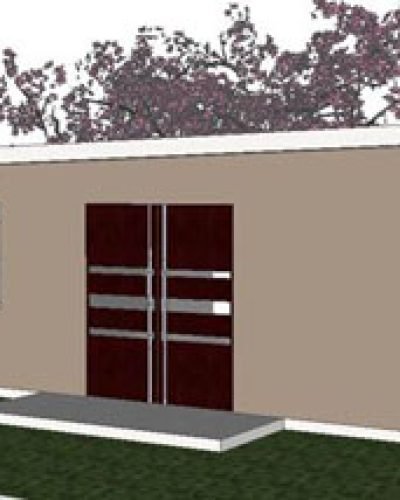

MODULE | OFFICE POSSIBILILTY
- Office – 1 Bathroom
- Total Area: 720 sq. ft / 67.10 sq. mt
COMMERCIAL BUILDING

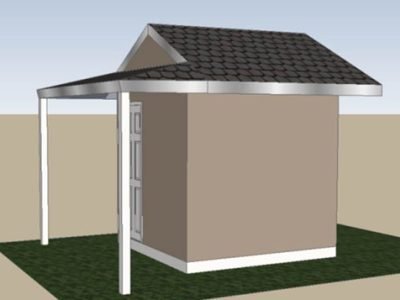

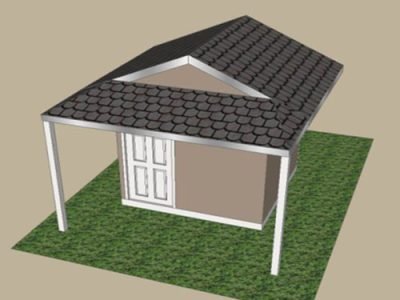

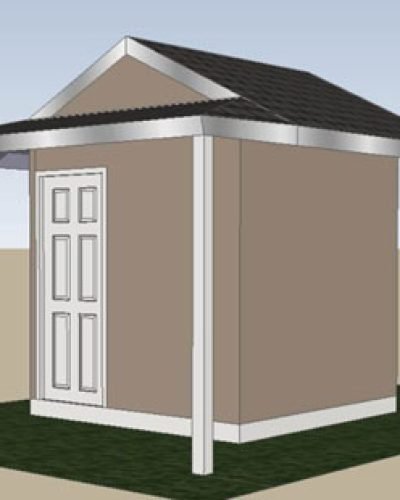

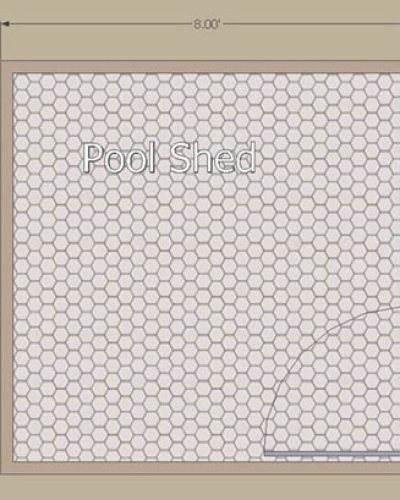

POOL SHED
- Total Area: 64.00 sq. ft. / 5.95sq. mt
SPECIAL USE

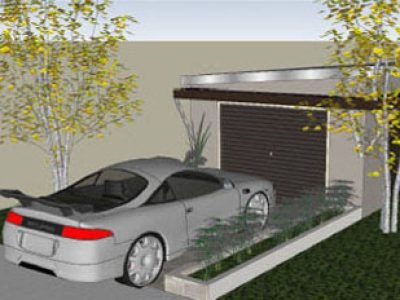

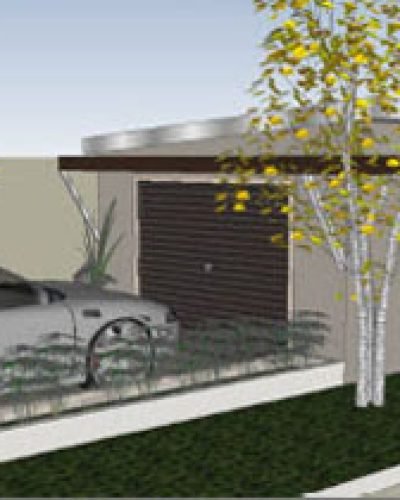

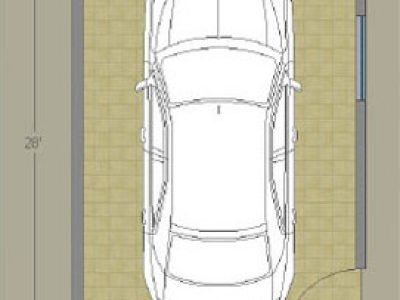

Single Car Garage Option B
- Garage Area: 672.00 sq. ft / 62.43 sq. mt
- Total Area: 1068.76 sq. ft / 99.29 sq. mt
house starter designs

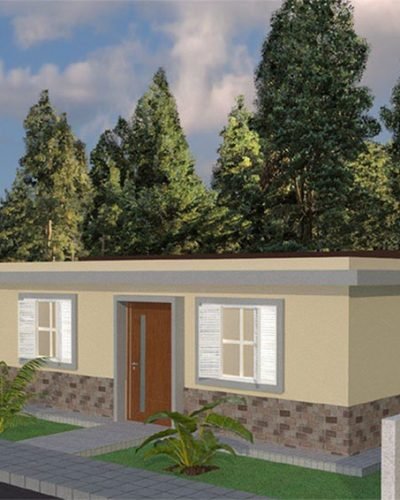

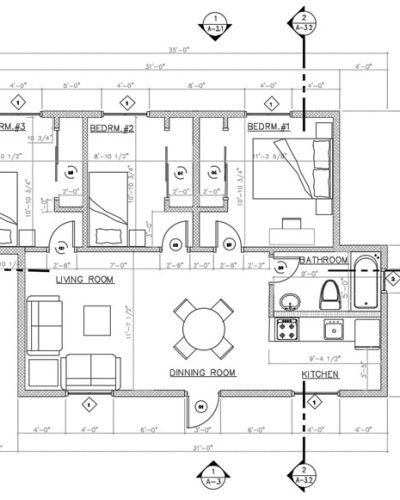

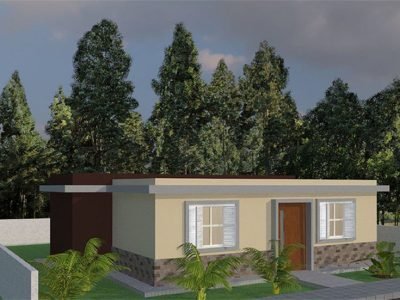

Pinotea House
- 3 Bedrooms – 1 Bathroom
- Total Area: 746.74 Sq.Ft. / 69.37 Mt²
MULTI-FAMILY

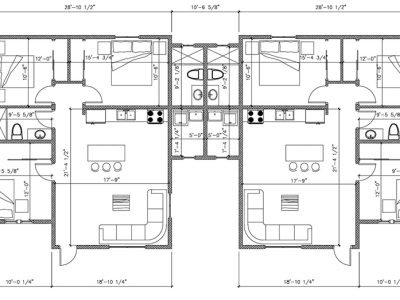

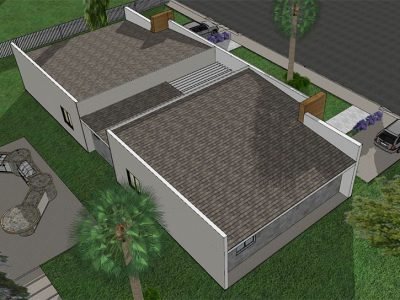

BAMBOO DUPLEX
- Building Area: 204.67 aq.ft / 189.96 sq.m
- 3 Bedrooms – 2 Bathrooms
- Unit Area: 1028.40 sq. ft. / 95.54 sq. m
MULTI-FAMILY

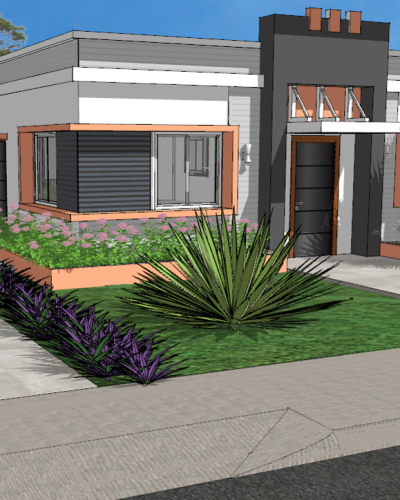

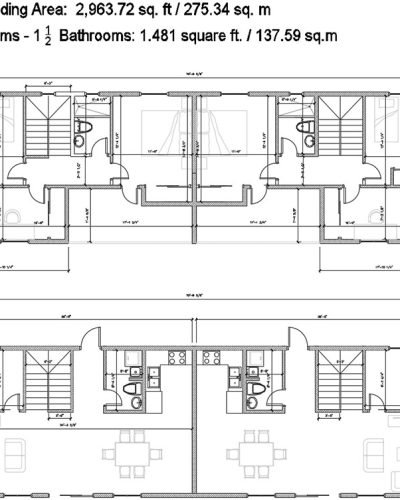

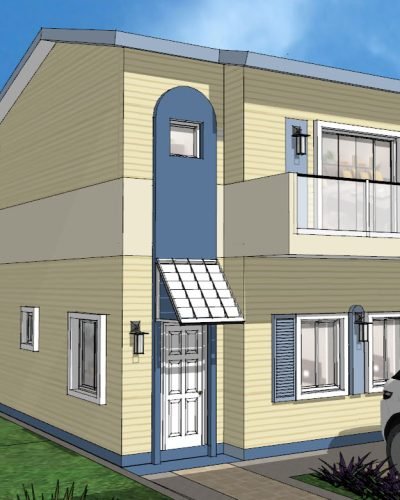

Butternut Duplex Townhouse
- Total Building Area: 2963.72 sq. ft / 275.34 m2
- 3 Bedrooms – 1 1/2 Bathrooms:
- 1.481 square ft / 137.59 sq.m
MULTI-FAMILY

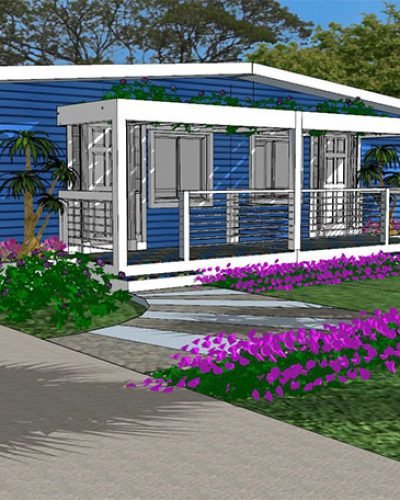

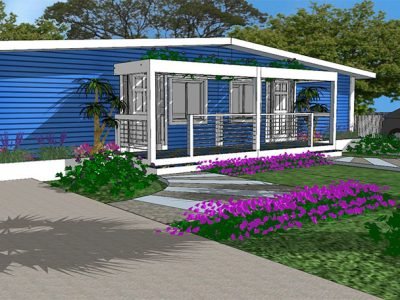

Pecan Duplex
- Building Area: 608/.16 sq.ft / 56.50 sq.m
- 2 Bedrooms – 1 Bathroom
- Apartment Area: 1203.13 sq.ft / 111,77 sq.m
MULTI-FAMILY

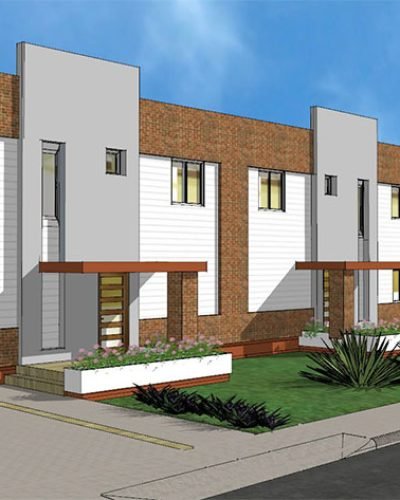

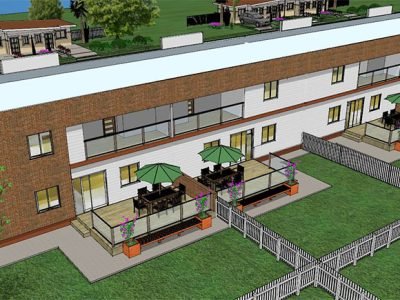

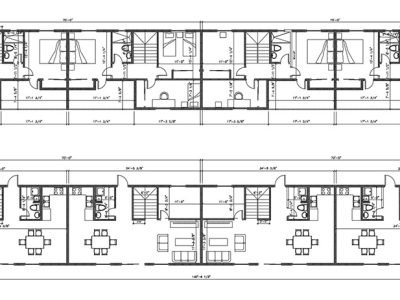

Butternut 4-Plex Townhouse
- Building Area: 5903.96 sq.ft/548.49 sq.m
- Unit Area: 1493.50 sq.ft/138.75 sq.m
- 3 Bedrooms – 1 1/2 Bathrooms
SINGLE-FAMILY
Walnut 8-Plex
- 3 Bedrooms / 2 Bathrooms
- Total Area: 1,344.90 Sq.Ft. – 124.94 Mt²
MULTI-FAMILY

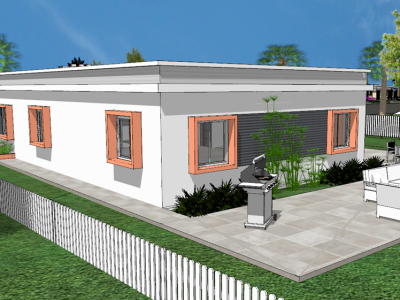

Chestnut House
- 3 Bedrooms – 2 Bathrooms
- House Area: 1,230 sq. ft / 114.27 sq. mt
- Carport 458.74 sq. ft. / 42.62 sq. mt.
- Total Area: 1688.74 sq. st / 156.89 sq. mt.
MULTI-FAMILY
Mulberry House
3 Bedrooms – 2 Bathrooms Total Area:
1592.84 sq. ft. / 147.89 sq.mt includes garage
MULTI-FAMILY

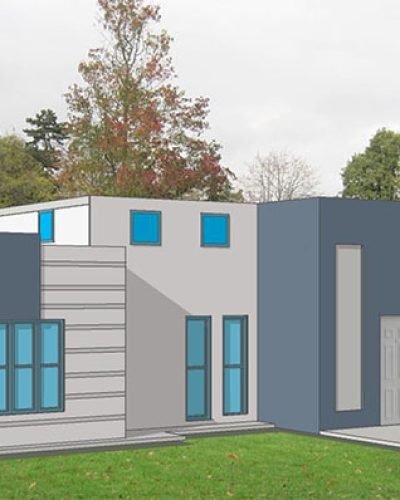

Contemporary House 3
- Contemporary House 3
- (available with optional port ache and high
roof entrance)
- 3 bedroom, 2 baths
- with 2 car garage
- 2025 square feet – 188 m2
SINGLE-FAMILY

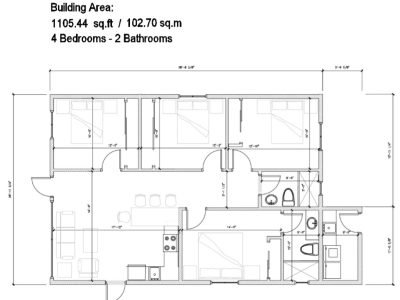

Sequoia House
4 Bedrooms – 2 Bathroom
Building Area: 1105.44 sq.ft. / 102.70 sq.m.
SINGLE-FAMILY

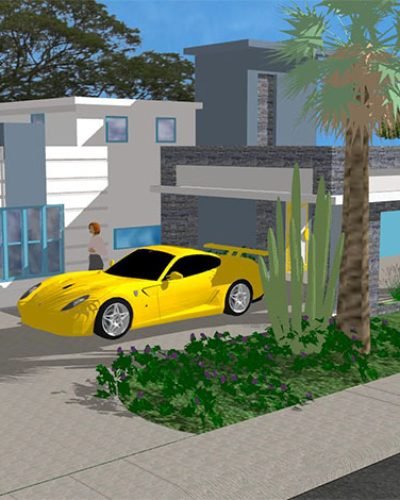

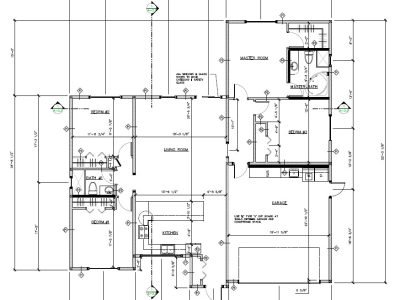

Contemporary House 4
- Available with optional portache
and high roof entrance)
- 4 bedroom 2 bath with 2 car garage
- 2180 square feet – 202 m2
SINGLE-FAMILY
Maple House
5 Bedrooms / 4 ½ Bathrooms
Total Area: 2,621.93 Sq.Ft. – 243.58 Mt²
SINGLE-FAMILY

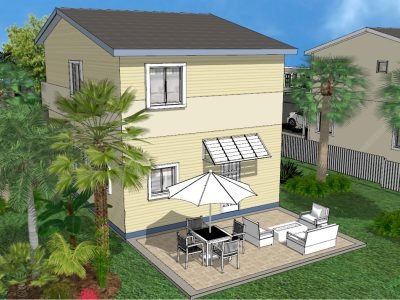

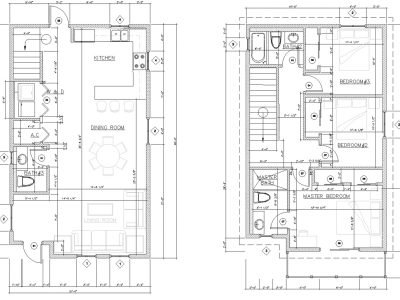

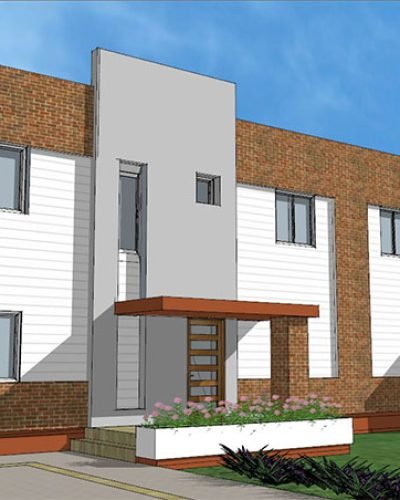

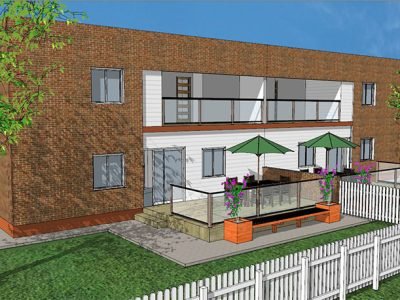

Biscayne Townhouse
3 Bedrooms / 2 ½ Bathrooms
Unit Area: 1,446.12 Sq.Ft. – 134.34 sq.m
commercial

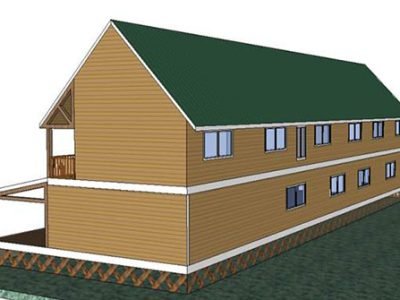

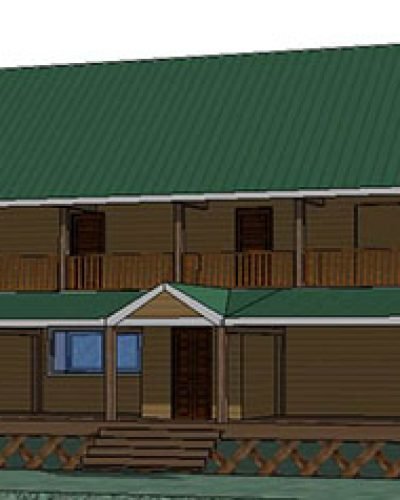

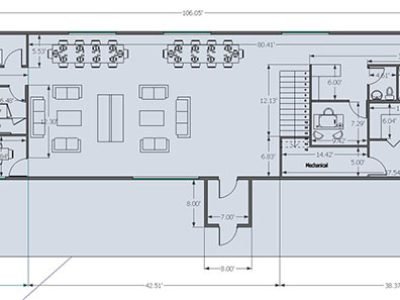

Pine Lodge
Big Horn Mountain Wildlife

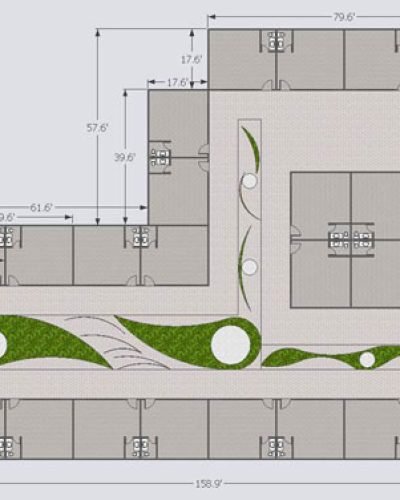

commercial

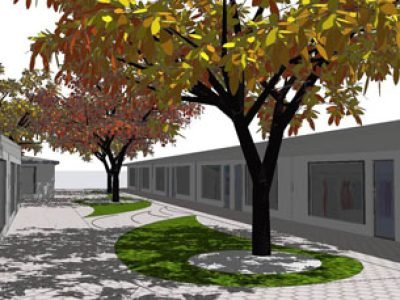

Module | Shopping Possibility
- Total Area: 11,598.24 sq. ft / 1077.51 sq. mt
- A composition of 11 efficiency modules can form a mini shopping center. The shopping or commercial center can be composed of any amount of Efficiency Modules to meet the clients needs.
- Example option : 22 stores of 349.20 sq. ft / 32.44 sq.mt
- Landscape
- Circulation area
commercial

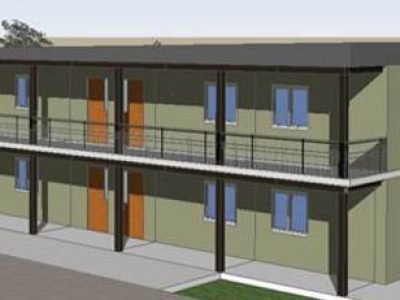

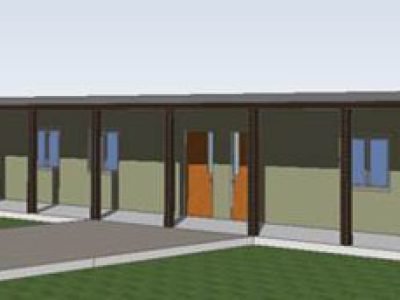

Educational Building
- Total Area: According Design
- Each Option has the possibility of being a
- First Floor or being a building of two floors and add other options.
- Floor Plan Option A
- Each Classroom has as a total area of 658 sq. ft / 61.13 sq. mt
- Option B
– Each Classroom has as a total area of 716 sq. ft / 66.51 sq. mt
- Option C
- Each Classroom has as a total area of 716 sq. ft / 66.51 sq. mt
commercial
Module | Elementary Schools Possibility
A composition of 8 efficiency modules can make an Elementary School. The area can be composed with any amount of Efficiency Module, the design will be according with the necessity that you can have.
- In this option we have:
- Administrative Area
- 5 Classrooms
- Cafeteria
- Use-Multiple room.
5 classroom
- Each Classroom has 720 sq. ft / 67.10 sq. mt
- Administrative Area : 720 sq. ft / 67.10 sq. mt
- Cafeteria : 720 sq. ft / 67.10 sq. mt
- Use- Multiple room : 720 sq. ft / 67.10 sq. mt
Possibility w/ Module Area
- Total Area: 11,598.24 sq. ft / 1077.51 sq. mt
- Total Area : 720 sq. ft / 67.10 sq. mt
middle - high schools possibility
- A composition of 9 efficiency modules can make Middle – High School.
- The area can be composed with any amount of Efficiency Module, the design will be according with the necessity that you can have. In this option we have:
- Administrative Area
- 5 Classrooms
- Cafeteria w/ Kitchen
- Use-Multiple room
Total Area: 11,598.24 sq. ft / 1077.51 sq. mt
Elementary Schools Possibility
elementary schools possibility
- 5 Classroom.
Each Classroom has 720 sq. ft / 67.10 sq. mt
- Cafeteria w / Kitchen : 1440 sq.ft / 134.20 sq.mt
- Administrative Area : 720 sq. ft / 67.10 sq. mt
- Use- Multiple room : 720 sq. ft / 67.10 sq. mt
- Total Area: 15,517.28 sq. ft / 1,441.60 sq. mt
